PEAK IPEH-004010 PCAN-Ethernet Gateway DR - USA Seller

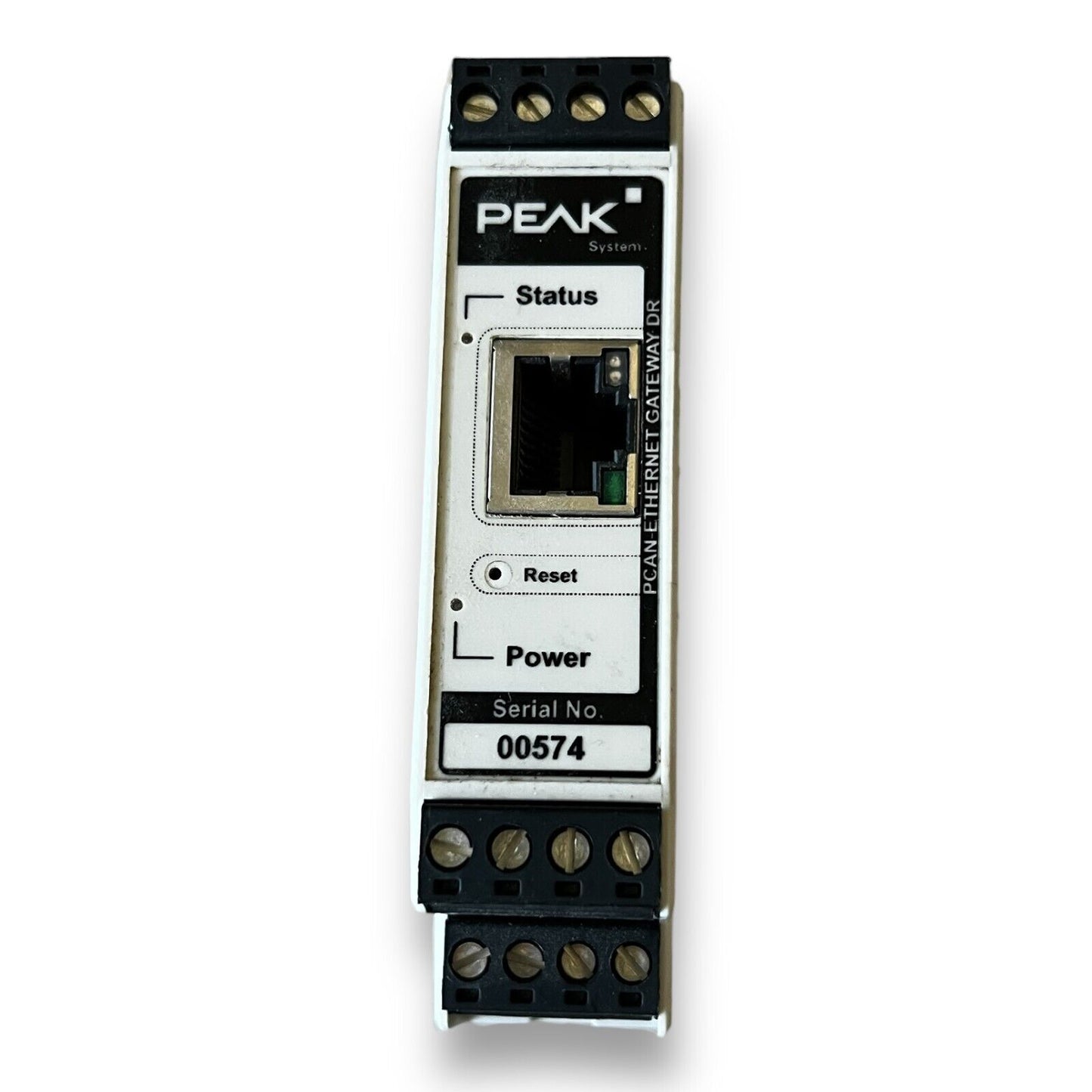

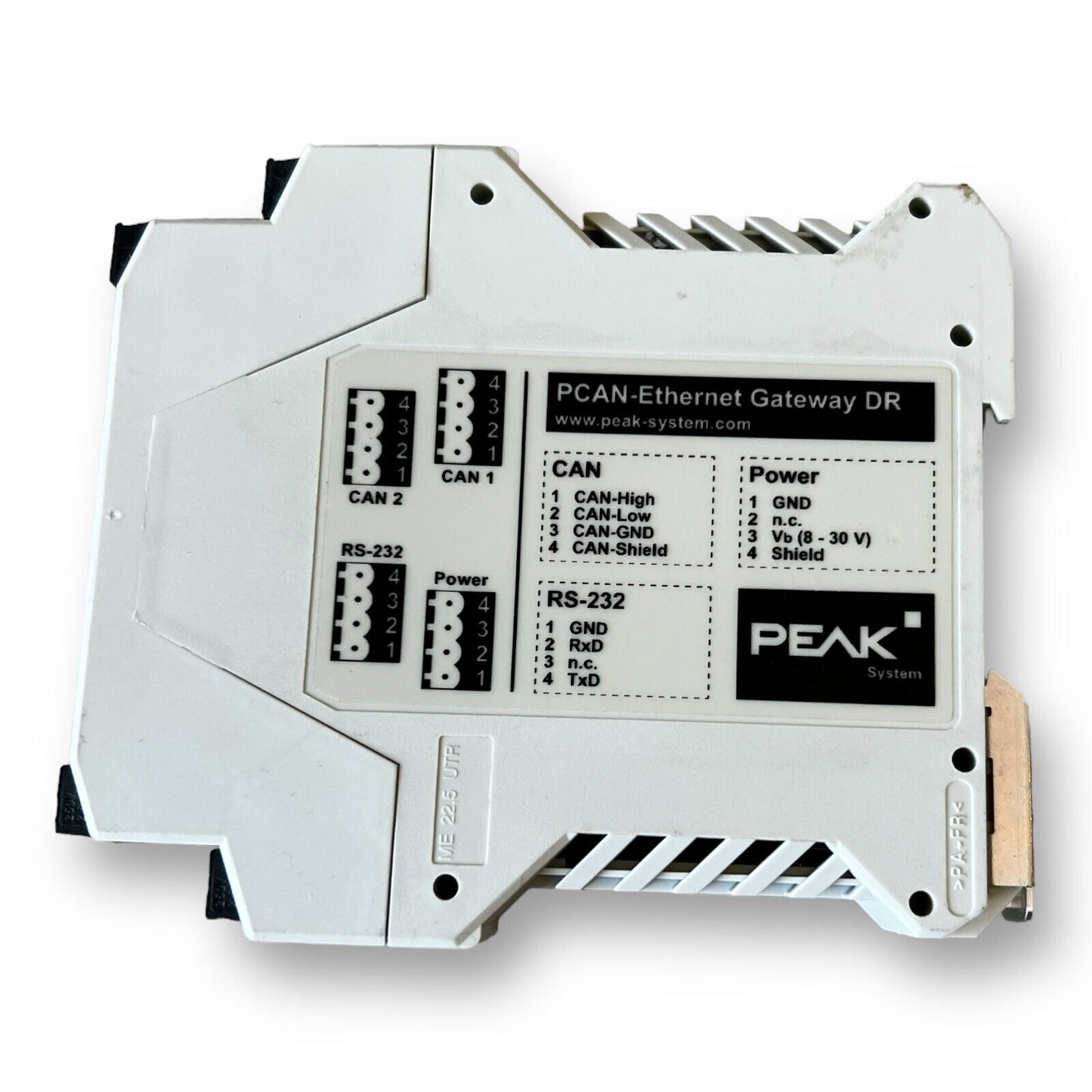

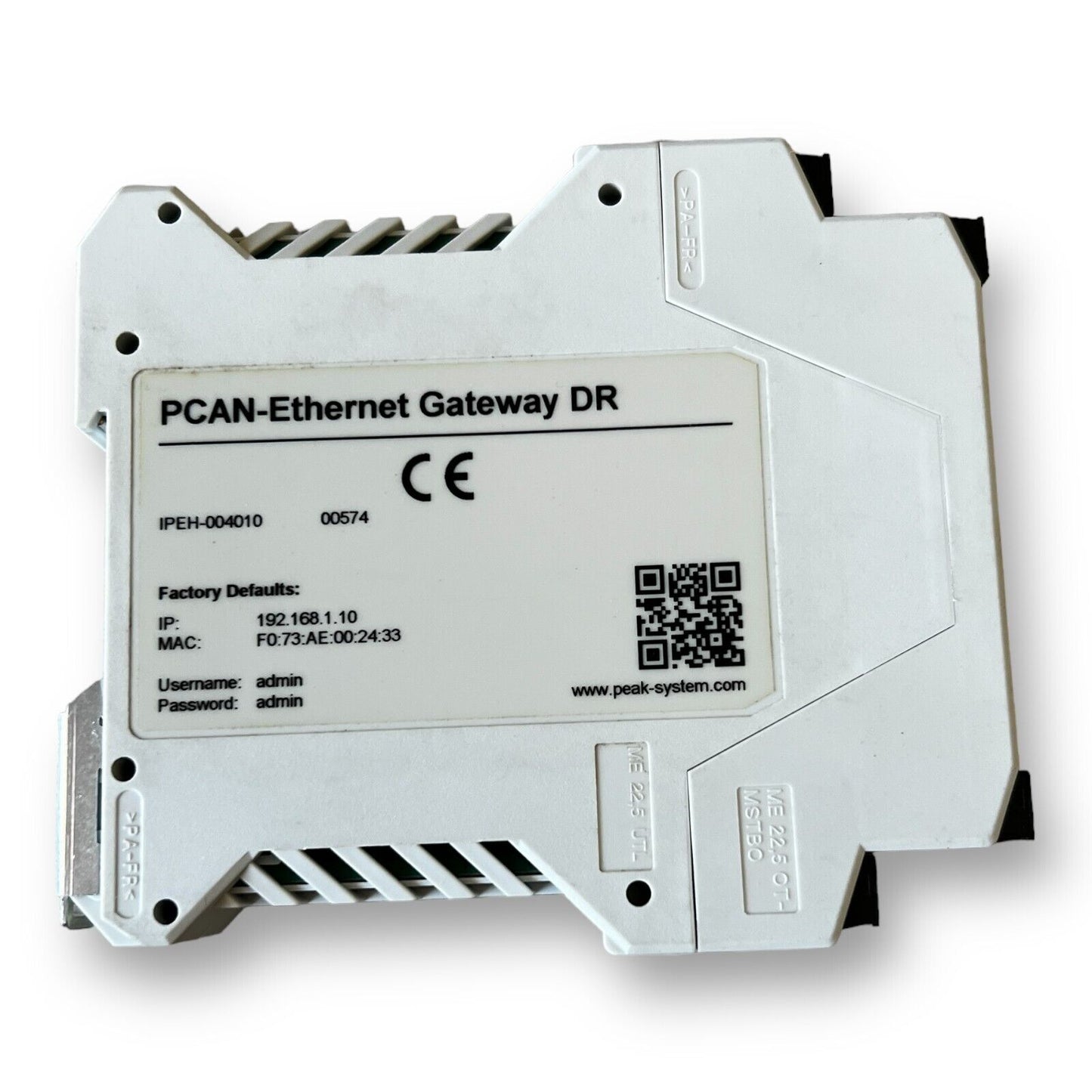

Product Information Brand: Peak Part Number: IPEH-004010 Condition: Used - functionality tested & verified Package Contents: 1 x Peak IPEH-004010 PCAN-Ethernet Gateway DR Module Specifications Two High-speed CAN channels (ISO 11898-2) Comply with CAN specifications 2.0 A/B Bit rates from 5 kbit/s up to 1 Mbit/s NXP PCA82C251 CAN transceiver Galvanic isolation of the CAN channels up to 500 V against each other, against RS-232 and the power supply Connections for CAN, RS-232, and power supply via 4-pole screw-terminal strips (Phoenix) LAN interface Data transmission using TCP or UDP 10/100 Mbit/s bit rates RJ-45 connector with status LEDs Monitoring and configuration of the devices via the web interface or JSON interface Software update via the web interface Reboot and reset of the device to factory defaults with a reset button Plastic casing (width: 22.5 mm) for mounting on a DIN rail (DIN EN 60715 TH35) LEDs for device status and power supply RS-232 connector for serial data transfer (reserved for future use) Voltage supply from 8 to 30 V Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
