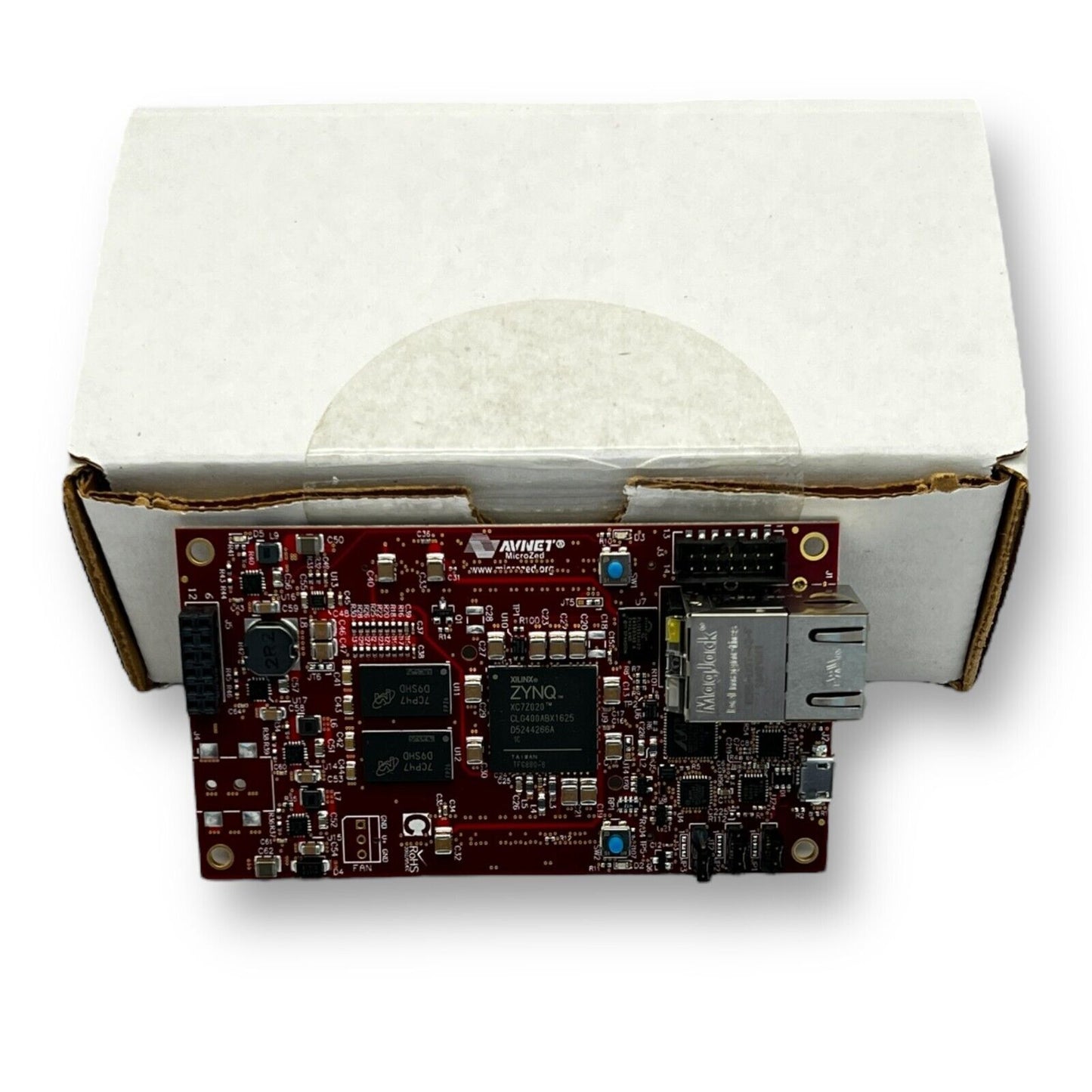

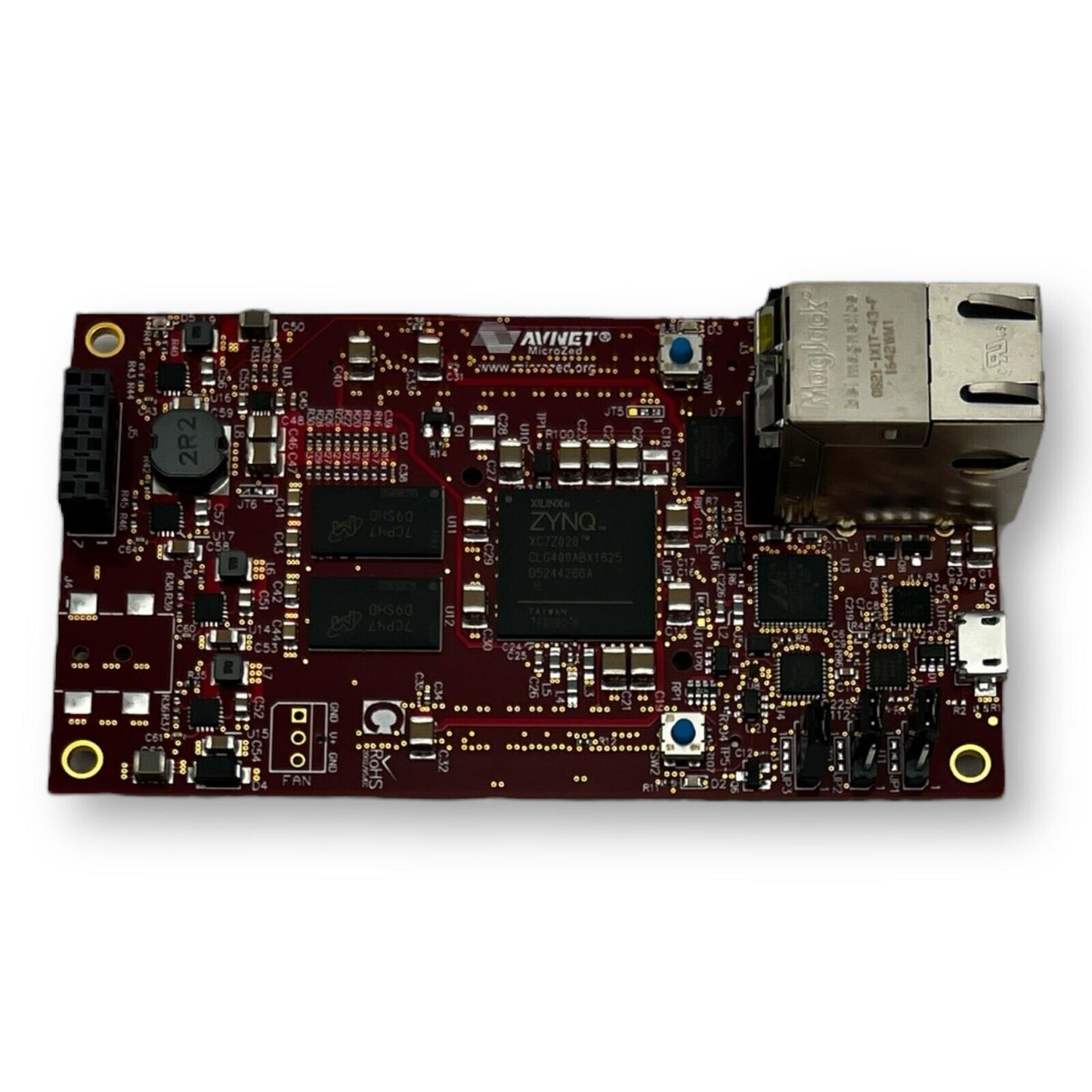

NEW Avnet MicroZed 7020 SOM Module AES-Z7MB-7Z020-SOM-G

NEW Avnet MicroZed 7020 SOM Module AES-Z7MB-7Z020-SOM-G

Regular price $275.49
Regular price Sale price $275.49
Sale Sold out
Shipping calculated at checkout.
Product Information Brand: Avnet Engineering Services Part Number: AES-Z7MB-7Z020-SOM-G/Rev-G Condition: Brand New Sealed Package Contents: 1 x Avnet AES-Z7MB-7Z020-SOM-G/REV-G Specifications MicroZed is a low-cost development board based on the Xilinx Zynq-7000 All Programmable SoC. Its unique design allows it to be used as both a stand-alone evaluation board for basic SoC experimentation, or combined with a carrier card as an embeddable system-on-module (SOM). MicroZed contains two I/O headers that provide connection to two I/O banks on the programmable logic (PL) side of the Zynq-7000 All Programmable SoC device. In stand-alone mode, these 100 PL I/O are inactive. When plugged into a carrier card, the I/O are accessible in a manner defined by the carrier card design. Features SoC XC7Z020-1CLG400C Memory 1 GB of DDR3 SDRAM 128 Mb of QSPI Flash Micro SD card interface Communications 10/100/1000 Ethernet USB 2.0 USB-UART User I/O (via dual board-to-board connectors) 7Z020 Version 100 User I/O (50 per connector) Configurable as up to 48 LVDS pairs or 100 single-ended I/O Other 2x6 Digilent Pmod compatible interface providing 8 PS MIO connections for user I/O Xilinx PC4 JTAG configuration port PS JTAG pins accessible via Pmod 33.33 MHz oscillator User LED and push switch
